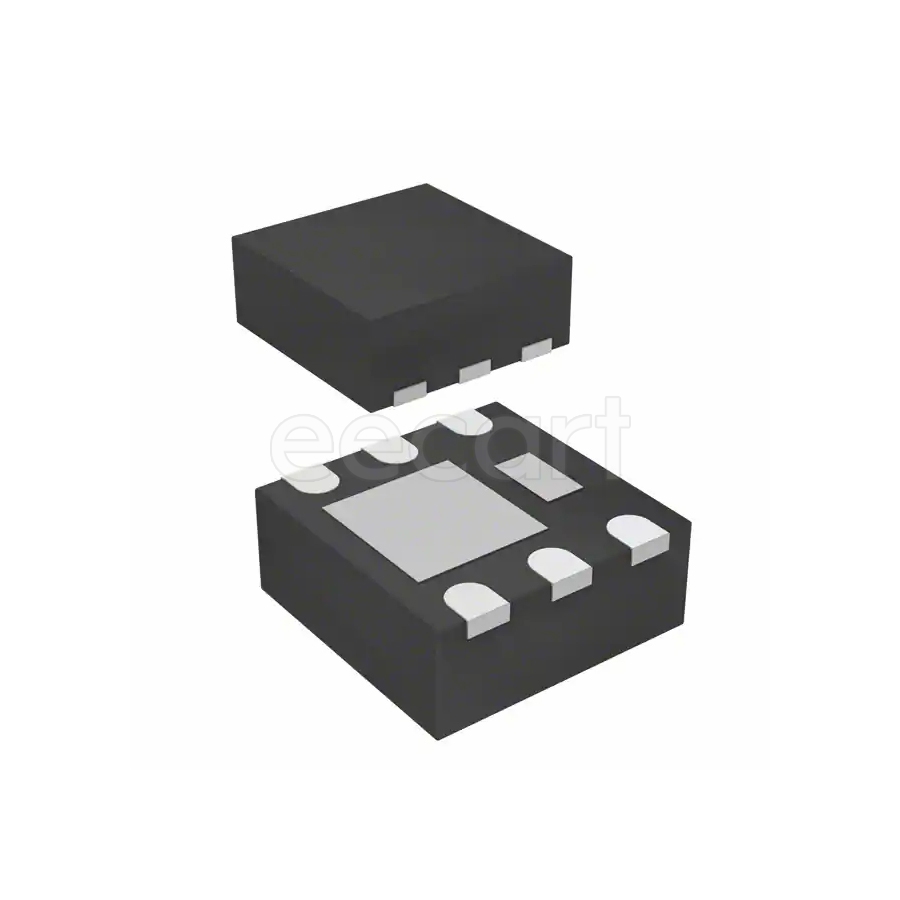

FDMA2002NZ
Manufacturer:
On Semiconductor
Mfr.Part #:
FDMA2002NZ
Datasheet:
Description:
MOSFETs MicroFET-6 SMD/SMT N-Channel number of channels:2 1.5 W 30 V Continuous Drain Current (ID):2.9 A 3 nC
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Resistance | 123 MΩ |
| Height | 750 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.04 g |
| Number of Elements | 2 |
| Current Rating | 2.9 A |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 650 mW |
| Power Dissipation | 1.5 W |
| Threshold Voltage | 1 V |
| Number of Channels | 2 |
| Input capacitance | 220 pF |
| Continuous Drain Current (ID) | 2.9 A |
| Rds On Max | 123 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| Turn-On Delay Time | 6 ns |
| Turn-Off Delay Time | 12 ns |
| Element Configuration | Dual |
| Rise Time | 8 ns |
| Gate Charge | 3 nC |
| Drain to Source Resistance | 75 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 12 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Gate to Source Threshold Voltage | 400 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 11395
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.45653 | $4.56530 |
| 25 | $0.39731 | $9.93275 |
| 50 | $0.34578 | $17.28900 |
| 100 | $0.30093 | $30.09300 |
| 300 | $0.26598 | $79.79400 |
| 500 | $0.23510 | $117.55000 |
| 1000 | $0.21203 | $212.03000 |
| 3000 | $0.18552 | $556.56000 |
| 5000 | $0.17268 | $863.40000 |
| 10000 | $0.16073 | $1607.30000 |
